The ECS-2012MV-327KE of ECS is powered by a 1.2V to 5.5V variable supply voltage or a standard 1.8V, 2.5V, 3.0V or 3.3V supply

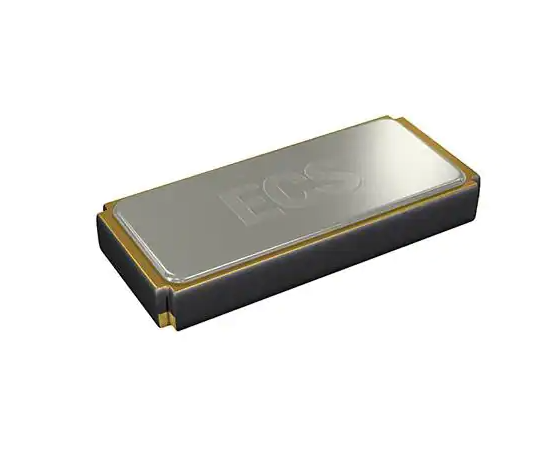

ECS 'ECS-3215MV-327KE HCMOS oscillator comes in a 2.0mm x 1.2mm x 0.85mm ceramic package that provides MultiVolt functionality. These electronic components provide a frequency of 32.768 kHz, frequency stability of ±10 ppm, and low current consumption of 0.5 μA in the standard industrial operating temperature range from -40°C to +85°C.
The ECS-2012MV-327KE belongs to the ECS MultiVolt oscillator family, designed to operate in a variable voltage range of 1.2V to 5.5V or on a standard 1.8V, 2.5V, 3.0V or 3.3V power supply. The component provides higher stability than a variety of uncompensated crystal oscillators, making it ideal for smart meters, wearables, industrial and Internet of Things applications.
Features
● 2.0 mm x 1.2 mm x 0.85 mm 4 Pad package
● 32.768 kHz frequency
● Stability: -150 ppm to +10 ppm at -40°C ~ +85°C
● Temperature range: -40°C to +85°C
● Current consumption: 0.5µA
● MultiVolt Capability: + 1.8V, + 2.5V, + 3.0V or + 3.3V or 1.2V ~ 5.5V power supply
● HCMOS output
● Comply with RoHS and REACH specifications
Applications
● Internet of things
● Industrial application
● wireless
● Wearable devices
● Intelligence scale
● Medical (non-life support type)
