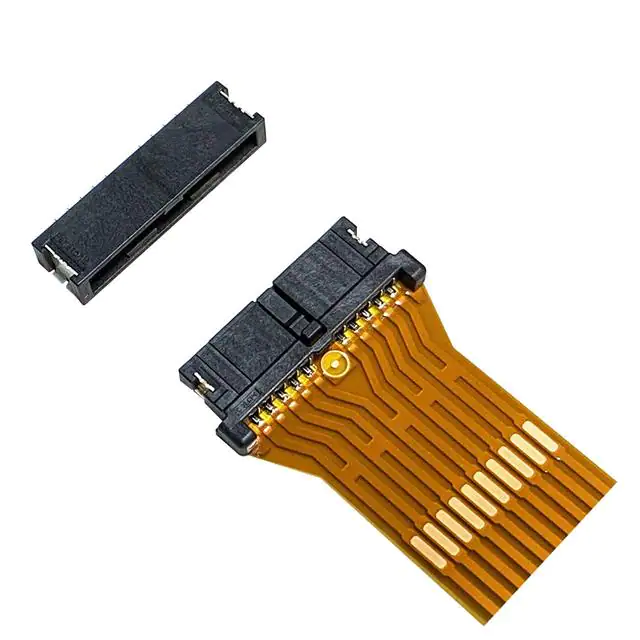

Panasonic's CF1 lightweight connectors are suitable for automotive applications with high impact, high vibration and high heat resistance requirements
Demand for FPC cables is increasing for automotive devices such as dashboards, steering switches, taillights, gear shifters, mirrors, headlights, and battery management systems. Panasonic's CF1 series panels provide 125°C heat resistance and necessary vibration characteristics to FPC automotive connectors for the automotive and transportation markets.
They meet overall weight reduction requirements and avoid operator wiring failures caused by wire connections in automotive applications. The CF1 Series Automotive connector can be connected directly without any relay harness when connected to the FPC bar and board of the battery management system. The series of automotive connectors maintain contact reliability by using a double-sided clip-on contact structure.
Panasonic's CF1 series connectors have an inertial locking structure that prevents 4-pin type half-splints. The bridge structure prevents accidental operation of the lock. The CF1 series design allows reflow soldering of the plug assembly to be performed simultaneously with other surface mount components without additional processes, while other competing components require manual connection.
Features and advantages
● Suitable for harsh automotive applications requiring high impact, high vibration and high temperature resistance
● Simple lightweight solutions; Easily connect FPC to circuit board without relay harness
● Heat resistance up to 125°C; Double-sided clip-type contact structure, with strong resistance to mechanical impact and vibration
● Anti-misoperation bridge structure, to prevent the misoperation of the matching lock
● Pin count: 4, 6, and 10
● Rated current: 2.0A/pin contact
● Rated voltage: 50 VAC/DC
● Reflow compatible to simplify assembly process
Applications
● Connect cables to the battery management system
●Instrument panel
● Steering switch
● Electronic rearview mirror and headlight
● Car
● Electric vehicle
● Traffic and transportation
