Molex antennas are compact in design to provide excellent performance on both metallic and non-metallic surfaces

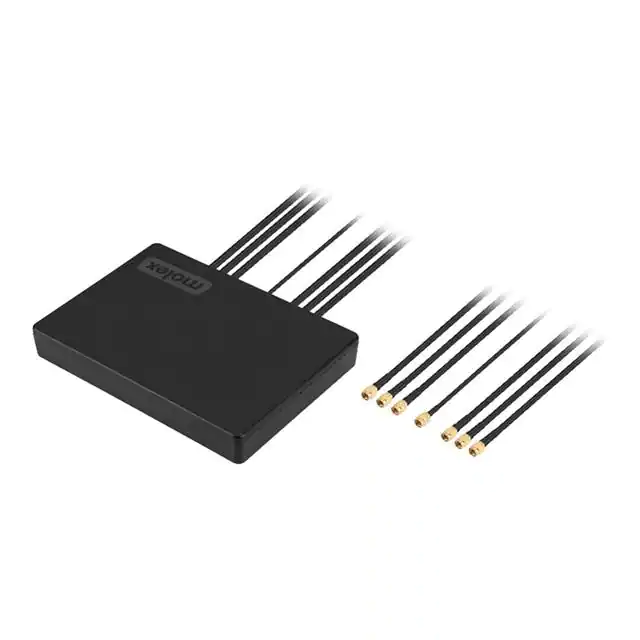

With two LTE/5G full band, two LTE/5G high band, two Wi-Fi and one GNSS function module, Molex's thin Multi-Hub 7-in-1 antenna has IP67 protection rating and is easy to install, making it ideal for advanced commercial vehicles and wireless applications. The 1,000 mm cable has an SMA male connector (matching the SMA jack female socket) and can be pasted for installation. The compact antenna provides excellent performance on both metallic and non-metallic surfaces and effectively meets the design requirements of high radiation efficiency.
Agvs, advanced commercial vehicles, and intelligent transportation applications require antennas to have multiple functions while maintaining product miniaturization requirements. Molex's full-featured combo antenna uses powerful 5G NR 4x4 MIMO technology to integrate LTE, Wi-Fi and GNSS capabilities in a thin and compact design.
Various commercial vehicles require different antenna characteristics, cable lengths, and connectors. Molex's Multi-Hub 7 in 1 antenna is IP67 rated and waterproof, with FAKRA adjustable wire length and connectors.
Physical parameter
● Wire length: 1,000.00 mm
● Unit length: 161.00 mm
● Installation mode: adhesive
● Net weight: 460.000 g
● Packaging type: PET bag
● Polarization: Linear, RHCP
● Radiation mode: highly directional (GPS), omnidirectional (4G, Wi-Fi)
● Thickness: 22.50mm
● Width: 115.00mm
Electrical features
● Electrical connection cable, SMA plug male connector
● Peak gain (dBi) : See product specifications
● Return loss - S11 (dB): < -4, < -5, < -7, < - 8 -
