KEMET High temperature EMI film capacitor

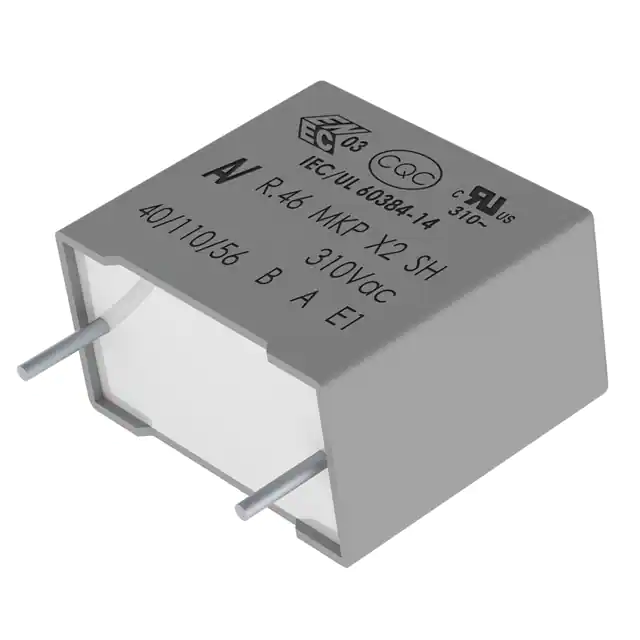

KEMET's R46H series is a series of X2 suppressor capacitors made from metallized polypropylene films encapsulated in UL 94 V-0 compliant material boxes in self-flameout resin. Ideal for high temperature and high reliability applications, the R46H series has a service life of 100,000 hours at +85°C and 2,000 hours at +125°C.

R46H film capacitors are used for electromagnetic interference (EMI) suppression in full-voltage starting applications worldwide, where X2 safety ratings are required. They are intended for situations where a capacitor failure will not result in an electric shock. Not suitable for "in series with power supply" type application

Features

● The first X2 MKP technology to hit the market, and:
-   Maximum temperature: +125°C
-   10 nf to 15 μF
-   Miniaturization: 30% smaller than the existing R46H
● 310 VAC/≤630 V Recommended DC voltage
● vLead spacing: 10 mm to 37.5 mm
● 100% plant screening at 2,200 VDC/1,500 VAC
● High reliability: 100,000 hours service life at +85°C

Applications

● Communication
-   5G data and communication power supply
-   The ability to support WBG semiconductor applications, high frequencies, high IRMS, and high temperatures makes it ideal for the 5G data         communications industry
● LED driver
-   Power supply (SMPS)
-   High operating temperature, miniaturization and high reliability perfectly match the demanding specifications of industrial SMPS required by LED power modules
