Cornell Dubilier's capacitors are ideal for high-power solar inverters and motor drive applications

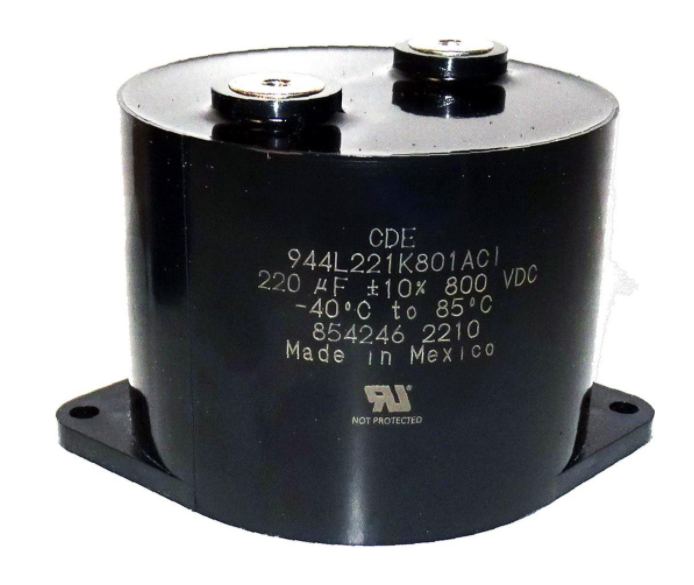

Cornell Dubilier's Model 944L DC Link capacitor is designed for fast switching power supply conversion applications. Their low inductance structure and low loss winding technology make them ideal for the design of the next generation of high power intensive inverters and converters.

Sturdy plastic housing with integrated mounting flanges, threaded studs, or insert termination options for easy, safe installation is UL 94-V-0 rated flame retardant. These capacitors are designed for higher switching frequencies and have high ripple currents. The series is ideal for DC fast EV charging and high power solar inverters and motor drives.

Features

● ESL reduced by 60%(equivalent series inductance)
● M8 threaded studs and M5 insert termination options
● Integrated mounting flange
● Capacitance range :33µF to 220µF
● Standard capacitance tolerance :±10%
● Voltage range :800 VDC to 1400 VDC
● Operating temperature :-40 ° C to +85 ° C
● Maximum RMS current: 90 A at +55°C
● Maximum RMS voltage :230 volts
● Life test: 5000 hours at +85°C, rated voltage
● UL 94-v-0 grade flame retardant plastic housing and solid resin filling
